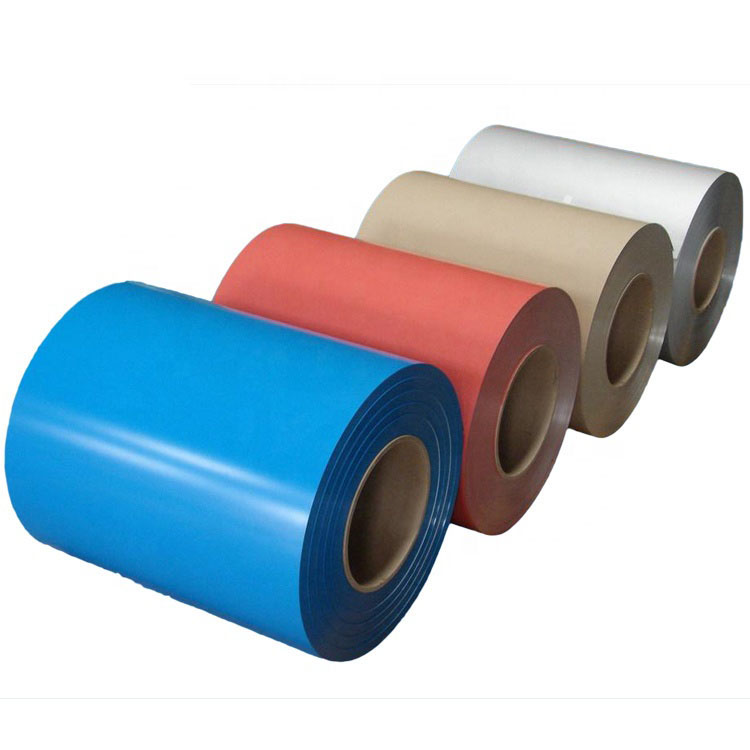

Dongmeng ASTM JIS Standard 0.8mm Thickness 1220mm Width Prepainted Galvanized Steel Coil Ppgi Color Coated Steel Coil

Product Description

Product Name	PPGI & PPGL Coil/Sheet, Prepainted Galvanized Steel & Prepainted Galvalume Steel, Color Coated Steel
Standard	EN, DIN, JIS, ASTM
Thickness	0.12-6.00mm (±0.001mm); or customized as required
Width	600-1500mm (±0.06mm); or customized as required
Zinc Coating	20-275g/m2, or customized as required
Substrate Type	Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Surface Color	RAL series, wood grain, stone grain, matte grain, camouflage grain, marble grain, flower grain, nano, etc
Coating Structure	PE, SMP, HDP, PVDF, PU
Steel Grade	DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC, SECE, BLCE+Z, BLDE+Z, BUSDE+Z
Brand	Dongmeng
Origin	China

Xi'an Dongmeng Steel Trading Co.,Ltd.exports various PPGI & PPGL coil, such as RAL color series, wood grain pattern series, camouflage pattern series, stone pattern series, matte pattern series, flower pattern series, etc. Products are exported to the international market, and you are welcome to purchase!

Details Images

PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.

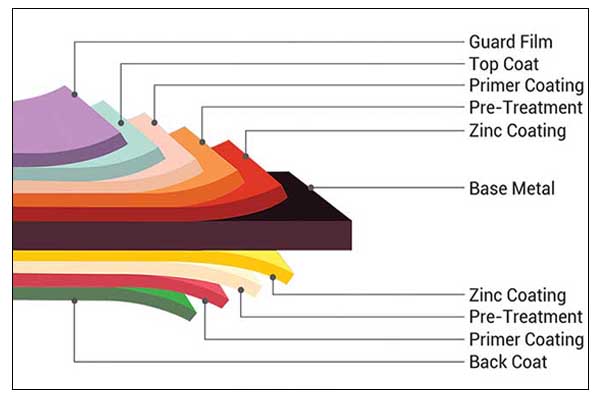

Diagram of Steel Surface Coating And Layers

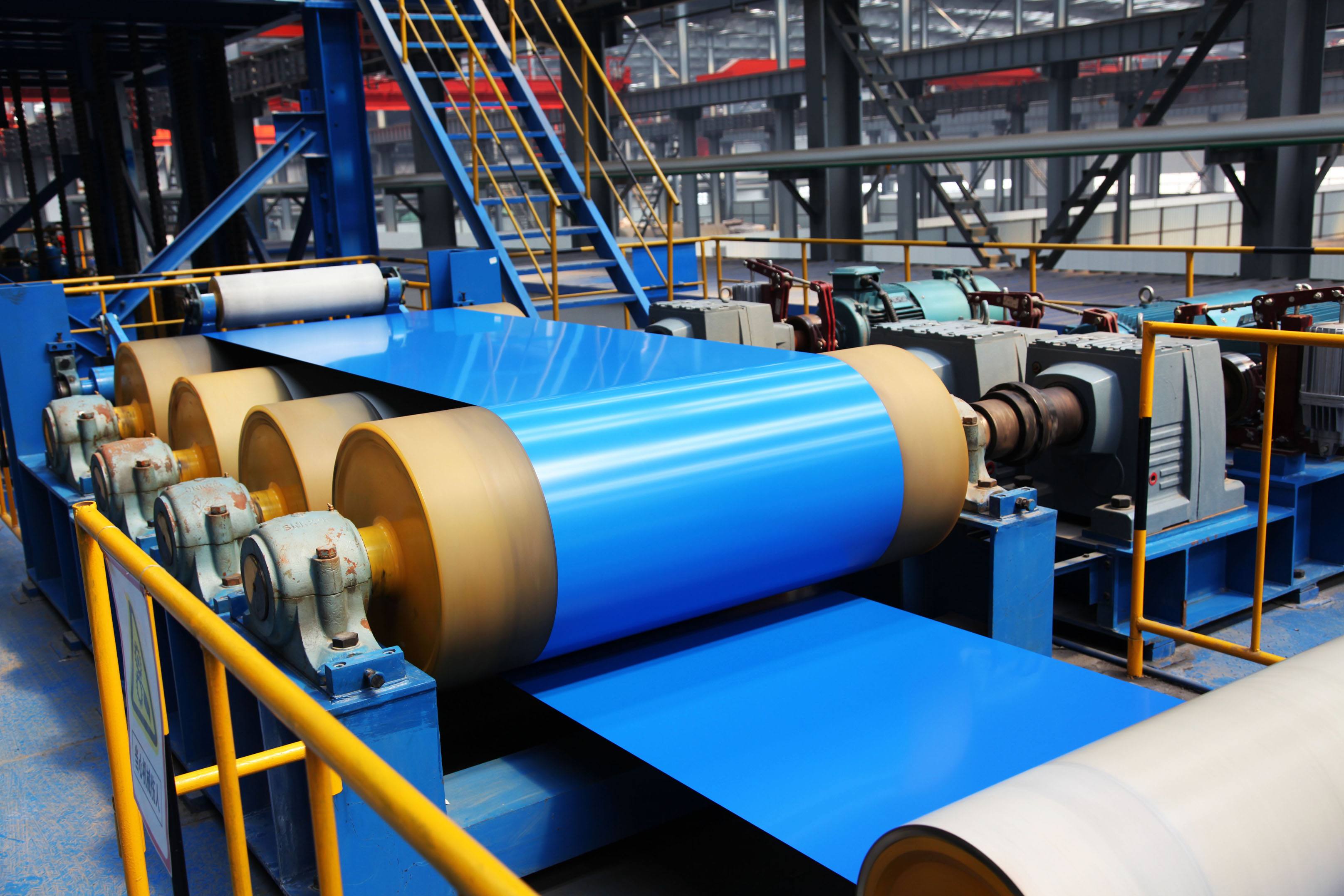

Production Process

Substrate Type

Hot Dip Galvanized Steel

Hot Dip Galvalume Steel

Electro Galvanized Steel

Coating Type of PPGI & PPGL

Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.

Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.

High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and
anti-pulverization, good paint film adhesion, rich color, excellent cost performance.

Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.

Polyurethane (PU): Polyurethane coating has the characteristics of high wear resistance, high corrosion resistance and high damage resistance. Under normal circumstances, the shelf life is more than 20 years. It is mainly used for buildings with severe environmental corrosion.

Main Features of PPGI & PPGL

1.Good durability and long life compared with galvanized steel.

2.Good heat resistance, less discoloration at high temperature than galvanized steel.

3.Good thermal reflectivity.

4.Processability and spraying performance similar to galvanized steel.

5.Good welding performance.

6.Good performance-price ratio, durable performance and extremely competitive price.
