    Checkered JIS AISI ASTM A240 304 Stainless Steel Plate 1mm-200mm Thickness

    Ask Lasest Price
    Brand Name : DMJD
    Supply Ability : 200000 Tons per Year
    Price : $1,216.36 - $1,896.32/Tons
    Model Number : 200 series, 300 Series, 400 Series
    Certification : Material quality report
    Delivery Time : 7-30 days
    MOQ : 5 Tons
    • Product Details
    • Company Profile

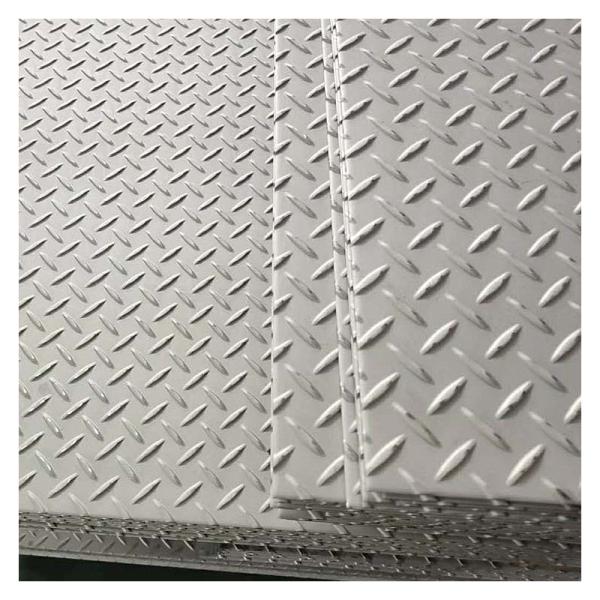

    Checkered JIS AISI ASTM A240 304 Stainless Steel Plate 1mm-200mm Thickness

    Ss304 316 Checkered Embossed Stainless Steel Sheet Plate


    Stainless steel pattern plate is processed by mechanical equipment on the stainless steel plate, so that the surface of the concave and convex pattern. In the early 1960s by the European large rolling mills began small batch production, then because of the excellent corrosion resistance and skid resistance of stainless steel pattern plate has been adopted by many industries and began to popularize.The earliest stainless steel pattern plate pattern pattern for horizontal and vertical stripes crisscrossing, domestic Shanxi Tisco and Shanghai Baosteel Group are in production, in the subsequent 20-30 years after continuous experiments and improvements to have better anti-skid pattern design is now also large-scale production promotion and application. In recent years, the use of stainless steel pattern plate is also in continuous innovation, breakthrough, change, the applicable industry and product models are also increasing, the speed of product replacement is more frequent.


    American standardEuropean standardChinese standard
    ASTM 304EN1.430106Cr19Ni10
    ASTM 316EN1.440106Cr17Ni12Mo2
    ASTM 316LEN1.4404022Cr17Ni12Mo2
    ASTM 430EN1.401610Cr17

    Stainless steel pattern plate is divided into two categories:


    The first is the steel mill in the production of stainless steel rolled by rolling, this kind of product thickness is about 3-6mm, is hot rolling after annealing pickling state, the process is as follows:


    Stainless steel billet → hot rolling mill rolling black roll → hot annealing and pickling line → leveling machine, tension leveling machine, polishing line → cross cutting line → hot rolling stainless steel pattern plate


    This type of patterned plate is flat on one side and patterned on the other. This kind of pattern plate is more commonly used in chemical industry, railway vehicles, platforms and other occasions requiring strength.

    The second kind is the processing enterprise on the market, buy steel mill hot rolling or cold rolling stainless steel plate, the decorative pattern plate that becomes through mechanical stamping, this kind of product is concave at the same time convex, often used at the occasion of general civil decoration. This kind of product is cold rolled more, 2B/BA cold rolled stainless steel pattern plate on the market is mostly this type.

    Checkered JIS AISI ASTM A240 304 Stainless Steel Plate 1mm-200mm Thickness


    With more and more scientific investment and research and development, the international use of stainless steel pattern plate is no longer limited to the professional fields and industrial applications of anti-skid and anti-corrosion, stainless steel pattern plate more innovative applications in building curtain wall, decoration decoration, rail transit, machinery manufacturing and other industries, And derived from square, diamond, leather, ceramic tile, stone brick, ripple and other more than 20 kinds of international general specifications model products. On the basis of the above products, new products such as coloring, coating, composite, nano sealing film, super anti-corrosion, anti-bacterial, anti-wear stainless steel pattern plate are also constantly meeting the needs of human high-quality life and industry innovation.

    Checkered JIS AISI ASTM A240 304 Stainless Steel Plate 1mm-200mm Thickness
