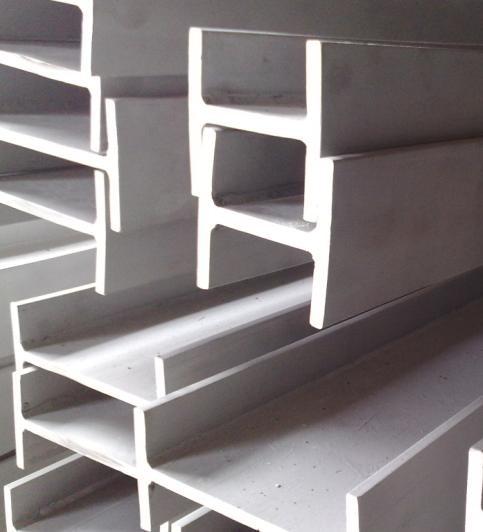

6m 9m 12m Stainless Steel Profiles I Beam No.1 2b Surface For Building Construction

ss201 ss304 430 Stainless steel profile I-beam, angle steel, channel steel

Stainless steel profiles are stainless steel materials with different section shapes obtained by hot melting and extrusion of stainless steel rods. The production process of stainless steel profile mainly includes three processes: melting and casting, extrusion and coloring. Stainless steel profiles are used in engineering construction. Based on the good corrosion resistance of stainless steel, it can permanently maintain the integrity of engineering design. Chromium containing stainless steel also integrates mechanical strength and high extensibility, which is easy to process and manufacture parts, and can meet the needs of architects and structural designers.

I-beam	angle steel	channel steel
The chemical composition of stainless steel I-beam belongs to the rolled steel series for general structure, and the main inspection indexes are C, Mn, P and s. According to different brands, the content varies, and the approximate range is C < 0.08%, Mn, 2.0, P < 0.035%, s < 0.03%.	Stainless steel angle steel is a long strip of steel whose two sides are perpendicular to each other and form an angle	Stainless steel channel steel is a long strip of steel with groove section shape. Stainless steel channel steel is divided into ordinary channel steel and light channel steel.
Materials are widely used in hardware products, medical machinery, food machinery, ships, automobiles, doors and windows, furniture, large machinery, etc.	It is widely used in various building structures and engineering structures, such as house beams, bridges [/ url], transmission towers, hoisting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.	(1) Main uses of hot rolled stainless steel ordinary channel steel: ordinary channel steel is mainly used in building structure, vehicle manufacturing and other industrial structures. It is often used with I-beam. (2) Hot rolled stainless steel light channel steel (yb164-63) hot rolled light channel steel is a kind of steel with wide legs and thin wall, which has better economic effect than ordinary hot-rolled channel steel.

Specification table of stainless steel I-beam

NNumberr	size(mmsize(mm))			uNumber	siz size(mm)e(mm)			Numbe Number	ize(mmsize(mm))
NNumberr	height ( h )	Leg width ( b )	Waist thickness ( d )	uNumber	height ( h )	Leg width ( b )	Waist thickness ( d )	Numbe Number	height ( h )	Leg width ( b )	Waist thickness ( d )
10	100	68	4.5	27b	270	124	10.5	45a	450	150	11.5
12	120	74	5.0	28a	280	122	8.5	45b	450	152	13.5
12.6	126	74	5.0	28b	280	124	10.5	45c	450	154	15.5
14	140	80	5.5	30a	300	126	9.0	50a	500	158	12.0
16	160	88	6.0	30b	300	128	11.0	50b	500	160	14..
18	180	94	6.5	30c	300	130	13.0	50c	500	162	16.0
20a	200	100	7.0	32a	320	130	9.5	55a	550	166	12.5
20b	200	102	9.0	32b	320	132	11.5	55b	550	168	14.5
22a	220	110	7.5	32c	320	134	13.5	55c	550	170	16.5
22b	220	112	9.5	36a	360	136	10.0	56a	560	166	12.5
24a	240	116	8.0	36b	360	138	12.0	56b	560	168	14.5
24b	240	118	10.0	36c	360	140	14.0	56c	560	170	16.5
25a	250	116	8.0	40a	400	142	10.5	63a	630	176	13.0
25b	250	118	10.0	40b	400	144	12.5	63b	630	178	15.0
27a	270	122	8.5	40c	400	146	14.5	63c	630	180	17.0

Standard size and unit weight of Equilateral angle steel(kg)

Number ber	size(size(mm)m)		Numbere	size(msize(mm)m)		NNumberb e	size(size(mm)		Numbee	size(size(mm)mm)		NNumbere	siz(size(mm)
Number ber	Edge width	Edge thickness	Numbere	Edge width	Edge thickness	NNumberb e	Edge width	Edge thickness	Numbee	Edge width	Edge thickness	NNumbere	Edge width	Edge thickness
2	20	3	5	50	3	7	70	7	9	90	10	14	140	12
2	20	4		50	4	7	70	8	10	100	6		140	14
2.5	25	3		50	5	7.5	75	5		100	7		140	16
2.5	25	4		50	6		75	6		100	8	16	160	10
3	30	3	5.6	56	3		75	7		100	10		160	12
3	30	4		56	4		75	8		100	12		160	14
3.6	36	3		56	5		75	10	11	110	7		160	16
	36	4		56	6	8	80	5		110	8	18	180	12
	36	5	6.3	63	4		80	6		110	10		180	14
4	40	3		63	5		80	7		110	12		180	16
	40	4		63	6		80	8		110	14		180	18
	40	5		63	8		80	10	12.5	125	8		180	20
4.5	45	3		63	10	9	90	6		125	10	20	200	16
	45	4	7	70	4		90	7		125	12		200	18
	45	5		70	5		90	8		125	14		200	20
	45	6		70	6		90	10	14	140	10		200	24

Standard dimensions and unit weight of
stainless steel channel (kg)

NNumberr	size(mm size(mm))			NNumber	size(mm) size(mm)			Number	size(mm size(mm))
NNumberr	height ( h )	Leg width ( b )	Waist thickness ( d )	NNumber	height ( h )	Leg width ( b )	Waist thickness ( d )	Number	height ( h )	Leg width ( b )	Waist thickness ( d )
5	50	37	4.5	20	200	75	9.0	28c	280	86	11.5
6.3	63	40	4.8	22a	220	77	7.0	30a	300	85	7.5
6.5	65	40	4.3	22	220	79	9.0	30b	300	87	9.5
8	80	43	5.0	24a	240	78	7.0	30c	300	89	11.5
10	100	48	5.3	24b	240	80	9.0	32a	320	88	8.0
12	120	53	5.5	24c	240	82	11.0	32b	320	90	10.0
12.6	126	53	5.5	25a	250	78	7.0	32c	320	92	12.0
14a	140	58	6.0	25b	250	80	9.0	36a	360	96	9.0
14b	140	60	8.0	25c	250	82	11.0	36b	360	98	11.0
16a	160	63	6.5	27a	270	82	7.5	36c	360	100	13.0
16	160	65	8.5	27b	270	84	9.5	40a	400	100	10.5
18a	180	68	7.0	27c	270	86	11.5	40b	400	102	12.5
18	180	70	9.0	28a	280	82	7.5	40c	400	104	14.5
20a	200	73	7.0	28b	280	84	9.5
