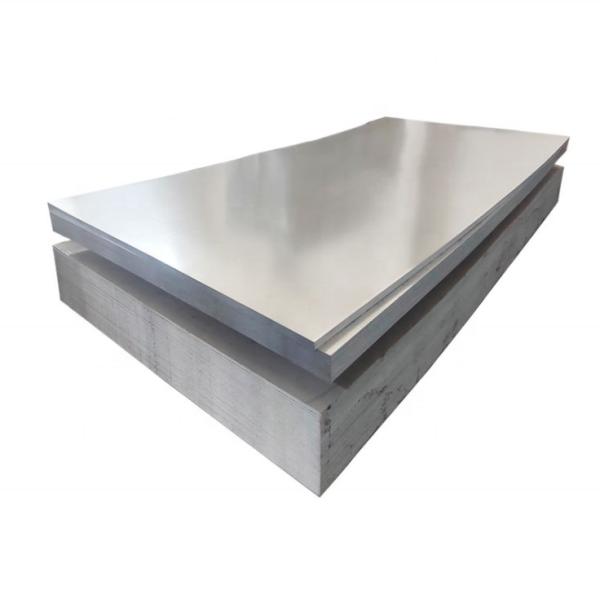

Dongmeng Good Quality Galvanized Steel Sheets For Garden Beds

Product Description

Product Name	Galvanized Steel Coil/Sheet/Strip/Plate/Roll; GI Steel Coil/Sheet; SGCC
Category	Hot Dip galvanized steel coil; Electro-galvanized steel coil; Galvannealed Steel Coil
Standard	EN, DIN, JIS, ASTM
Thickness & Tolerance	0.12-6.00mm (+0/-0.001mm), or customized as required
Width & Tolerance	600-1500 mm (+/-0.06mm), or customized as required
Hardness	Soft (normal), Hard, Full hard
Zinc Coating	30-275 G/M², or customized as required
Spangle	Normal Spangle coating(NS), Minimized Spangle coating(MS), Spangle-Free(FS)
Surface Treatment	Anti-Finger printing, Chromated, Oiled, Non-Oiled
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Application	Boiler Plate,Container Plate,Flange Plate,Ship Plate.
Brand	Dongmeng
Origin	China

Xi'an Dongmeng Steel Trading Co.,Ltd.produces high-quality hot-dip galvanized steel coils and electrogalvanized coils. As a very cost-effective building material and decorative material, because our products are cheap and reliable, our products are sold all over the world, favored by local customers, and also promote the development of the local economy. Friends from all over the world welcome you to buy our products!

Details Images

Product Introduction

Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.

Galvanized steel coil is to immerse a thin steel plate in molten zinc, so that a layer of zinc is attached to the surface. It is
an effective anti-corrosion method and can provide a long service life of metal materials.

Surface Structure

Normal spangle

Through addition of certain heavy metal element into molten zinc bath, regular spangle pattern is produced on Hot-dip zinc-coated steel sheet.

Minimized spangle

The zinc layer(coating) does Not contain Lead(Pb), which complies with EU WEEE and RoHS directives. This is a non-toxic and environmental friendly material.

Spangle-free

During hot-dip galvanizing, only a certain amount of aluminum is added to the zinc solution, and lead-free, antimony, and tin are not added to produce spangle-free products.

Production Process of Galvanized Steel Coil

Application

Galvanized steel coil products are mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and other industries. Such as building roofs, highway guardrails, sheet metal processing, roof grilles, household appliance enclosures, ventilation ducts, chimneys, kitchen utensils, grain storage and transportation, frozen processing of meat and aquatic products, etc.

General Size and Grade

Size(mm)	Zinc Coating(g/m2)	Steel Grade
0.20*1000	80	DX51D+Z
0.25*1000	80	DX51D+Z
0.3*1000	80	DX51D+Z
0.35*1000	80	DX51D+Z
0.4*1000	80	DX51D+Z
0.5*1000	80	S280GD+Z
0.5*1000	80	DX51D+Z
0.58*1000	80	S350GD+Z
0.6*1000	80	DX51D+Z
0.7*1000	80	DX51D+Z
0.75*1000	80	DX51D+Z
0.8*1000	80	DX51D+Z
0.8*1000	80	DX53D+Z
0.85*1000	80	DX51D+Z
0.9*1000	80	DX51D+Z
0.98*1000	80	DX51D+Z
0.95*1000	80	DX51D+Z
1.0*1000	80	DX51D+Z
1.1*1000	80	DX51D+Z
1.2*1000	80	DX51D+Z
1.2*1050	150	CSB
1.4*1000	80	DX51D+Z
1.5*1000	80	DX51D+Z
1.55*1000	180	S280GD+Z
1.55*1000	180	S350GD+Z
1.6*1000	80	DX51D+Z
1.8*1000	80	DX51D+Z
1.9*1000	80	DX51D+Z
1.95*1000	180	S350GD
1.98*1000	80	DX51D+Z
1.95*1000	180	S320GD+Z
1.95*1000	180	S280GD+Z
1.95*1000	275	S350GD+Z
2.0*1000	80	DX51D+Z
0.36*1250	80	DX51D+Z
0.4*1250	80	DX51D+Z
0.42*1250	80	DX51D+Z
0.45*1250	225	S280GD+Z
0.47*1250	225	S280GD+Z
0.5*1250	80	SGCC
0.55*1250	180	S280GD+Z
0.55*1250	225	S280GD+Z
0.6*1250	80	DX51D+Z
0.65*1250	180	DX51D+Z
0.7*1250	80	DX51D+Z
0.7*1250	80	SGCC
0.75*1250	80	DX51D+Z
0.8*1250	80	DX51D+Z
0.9*1250	80	DX51D+Z
0.95*1250	80	DX51D+Z
1.0*1250	80	DX51D+Z
1.15*1250	80	DX51D+Z
1.1*1250	80	DX51D+Z
1.2*1250	80	DX51D+Z
1.35*1250	80	DX51D+Z
1.4*1250	80	DX51D+Z
1.5*1250	80	DX51D+Z
1.55*1250	80	DX51D+Z
1.6*1250	120	SGCC
1.6*1250	80	DX51D+Z
1.8*1250	80	DX51D+Z
1.85*1250	90	DX51D+Z
1.95*1250	80	DX51D+Z
1.75*1250	80	DX51D+Z
2.0*1250	80	DX51D+Z
2.0*1250	120	SGCC
2.5*1250	80	DX51D+Z

Main Features of Galvanized Steel

Anticorrosive: 13 years in heavy industrial areas, 50 years in the ocean, 104 years in the suburbs and 30 years in cities.
Cheap: The cost of hot-dip galvanizing is lower than that of other coatings.
Reliable: The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more
durable.
Strong toughness: The galvanized steel sheet layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
Comprehensive protection: Every part of the plated piece can be galvanized, and is fully protected even in depressions,sharp corners,and hidden places.
Save time and energy: Galvanizing process is faster than other coating methods.

Related Products

Company Introduction

Xi 'an Dongmeng Steel Trading Co., Ltd is located in Xi'an city of Shaanxi province, China. We are the main manufacturer and supplier of iron steel and aluminum, and our products cover carbon steel, alloy steel, stainless steel, galvanized products, aluminum including pipe,sheet,coil, bar, fittings etc. All of our products are manufactured by latest manufacturing techniques with our advanced equipment which can better achieve modern highest technology and customer's various requirements. We have obtained ISO9001: 2000 quality management system certification, and the quality certification from the well-known certification company, also our products meet the standard of ASTM, DIN,JIS, and GB. Under the good supportive policy and fund support from our government, we are willing to surrender part of our profits to clients to achieve mutual benefit and win-win results. With well-deserved reputation, excellent quality, and competitive price, we are looking forward to even greater and longer lasting cooperation with overseas customers.

Our Services & Strength

We have advanced technology and equipment, strict detection means, scientific management to guarantee the high-quality, stability and reliability for every batch of product dispatched from the factory. Also, our company has many years of foreign trade experience and has established long term trade cooperation with many foreign companies. All of us are ready to start the business cooperation with you.

Packing&Shipping

Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven steel belt.or according to customer's requirement.

FAQ

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.

Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances
occur.

Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
