Hot Rolled Cold Formed Profile Shape Beam Size Upn 160 Section
Structural Steel U Channel Price
·Stainless steel angle steel is a long strip of steel whose two
sides are perpendicular to each other and form an angle. There are
equilateral stainless steel angle steel and unequal stainless steel
angle steel. The two sides of equilateral stainless steel angle
steel are equal in width. Its specification is based on the side
width × Edge width × The edge thickness is expressed in
millimeters. Such as "∠ 25" × twenty-five × 3 ", means equal sided
stainless steel angle steel with side width of 25mm and side
thickness of 3mm.
·Stainless steel angle steel can form various stress components
according to different structural needs, and can also be used as
connectors between components. It is widely used in various
building structures and engineering structures, such as house
beams, bridges [/ url], transmission towers, hoisting and
transportation machinery, ships, industrial furnaces, reaction
towers, container racks and warehouse shelves.
·Stainless steel angle steel is a carbon structural steel for
construction. It is a section steel with simple section. It is
mainly used for metal components and plant frame. In use, it is
required to have good weldability, plastic deformation performance
and certain mechanical strength. The raw material billet for
producing stainless steel angle steel is low-carbon square billet,
and the finished stainless steel angle steel is delivered in hot
rolling forming, normalizing or hot rolling state.

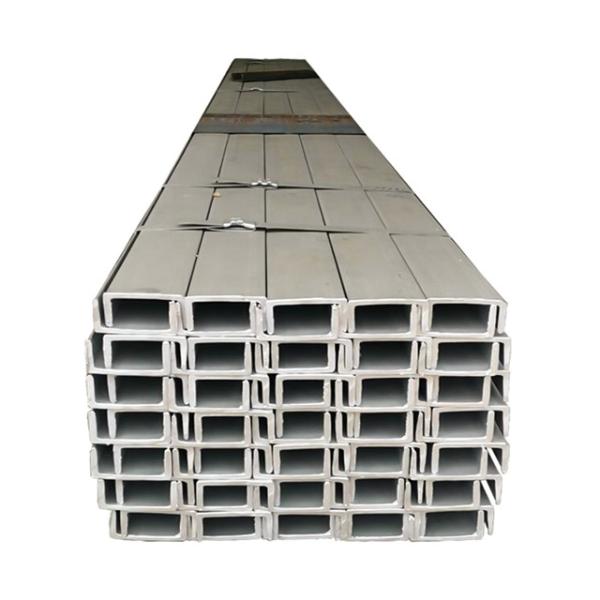

Stainless steel channel steel is a long strip of steel with groove
section shape. Stainless steel channel steel is divided into
ordinary channel steel and light channel steel.
(1) Main uses of hot rolled stainless steel ordinary channel steel:
ordinary channel steel is mainly used in building structure,
vehicle manufacturing and other industrial structures. It is often
used with I-beam.
(2) Hot rolled stainless steel light channel steel (yb164-63) hot
rolled light channel steel is a kind of steel with wide legs and
thin wall, which has better economic effect than ordinary
hot-rolled channel steel.
Standard dimensions and unit weight of stainless steel channel (kg)
| Number | size(mm) | Number | size(mm) | Numbe
| size(mm) |
height
( h ) | Leg width ( b ) | Waist thickness ( d ) | height ( h ) | Leg width ( b ) | Waist thickness( d ) | height
( h ) | Leg width ( b ) | Waist thickness ( d ) |
| 5 | 50 | 37 | 4.5 | 20 | 200 | 75 | 9.0 | 28c | 280 | 86 | 11.5 |
| 6.3 | 63 | 40 | 4.8 | 22a | 220 | 77 | 7.0 | 30a | 300 | 85 | 7.5 |
| 6.5 | 65 | 40 | 4.3 | 22 | 220 | 79 | 9.0 | 30b | 300 | 87 | 9.5 |
| 8 | 80 | 43 | 5.0 | 24a | 240 | 78 | 7.0 | 30c | 300 | 89 | 11.5 |
| 10 | 100 | 48 | 5.3 | 24b | 240 | 80 | 9.0 | 32a | 320 | 88 | 8.0 |
| 12 | 120 | 53 | 5.5 | 24c | 240 | 82 | 11.0 | 32b | 320 | 90 | 10.0 |
| 12.6 | 126 | 53 | 5.5 | 25a | 250 | 78 | 7.0 | 32c | 320 | 92 | 12.0 |
| 14a | 140 | 58 | 6.0 | 25b | 250 | 80 | 9.0 | 36a | 360 | 96 | 9.0 |
| 14b | 140 | 60 | 8.0 | 25c | 250 | 82 | 11.0 | 36b | 360 | 98 | 11.0 |
| 16a | 160 | 63 | 6.5 | 27a | 270 | 82 | 7.5 | 36c | 360 | 100 | 13.0 |
| 16 | 160 | 65 | 8.5 | 27b | 270 | 84 | 9.5 | 40a | 400 | 100 | 10.5 |
| 18a | 180 | 68 | 7.0 | 27c | 270 | 86 | 11.5 | 40b | 400 | 102 | 12.5 |
| 18 | 180 | 70 | 9.0 | 28a | 280 | 82 | 7.5 | 40c | 400 | 104 | 14.5 |
| 20a | 200 | 73 | 7.0 | 28b | 280 | 84 | 9.5 | |
The chemical composition of stainless steel I-beam belongs to the
rolled steel series for general structure, and the main inspection
indexes are C, Mn, P and s. According to different brands, the
content varies, and the approximate range is C < 0.08%, Mn, 2.0,
P < 0.035%, s < 0.03%.
Materials are widely used in hardware products, medical machinery,
food machinery, ships, automobiles, doors and windows, furniture,
large machinery, etc.
Materials: 201 (1cr17ni5mn6n), 202 (2Cr13Mn9Ni4), 301 (1cr17ni7),
303 (y1cr18ni9), 304 (OCr18Ni9), 304L (03cr19ni10), 316
(0Cr17Ni12Mo2), 316L (00Cr17Ni14Mo2), 321 (1Cr18Ni9Ti), 420
(2Cr13), 310S (0Cr25Ni20).
